House Construction in Lahore: Live Site Updates

Live update from a house we are building in Lahore. These are real photos from our own site, shown stage by stage so you can see how Glorious Builders builds: soil compaction, brick masonry, lintel shuttering and curing. We add new photos here as the work moves forward.

Stage 1: Soil compaction and plinth filling

We compact the soil in layers before any plinth filling, so the floor does not settle later.

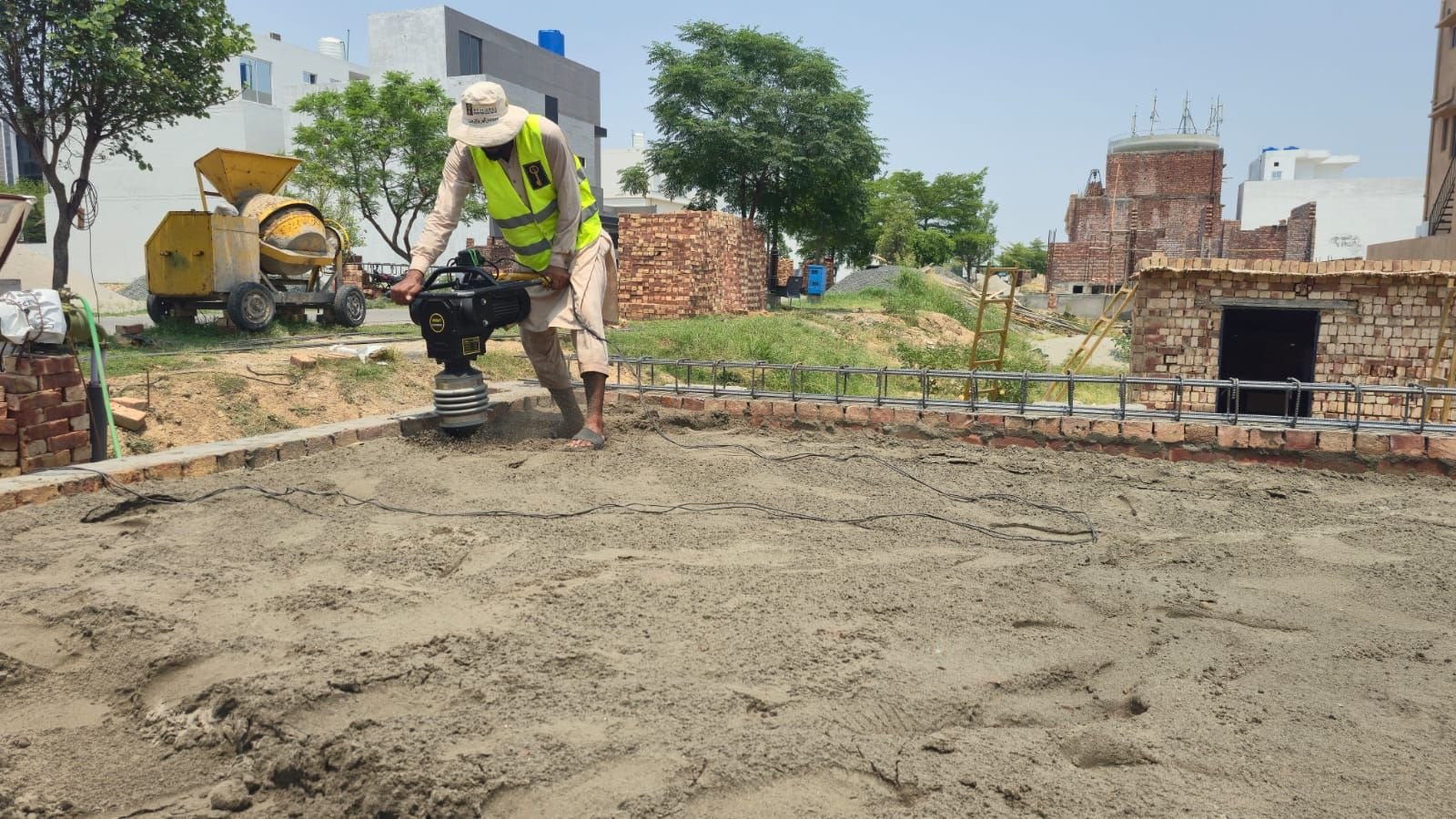

Worker compacting soil with a plate compactor before plinth filling at a house construction site in Lahore — Soil compaction before plinth filling

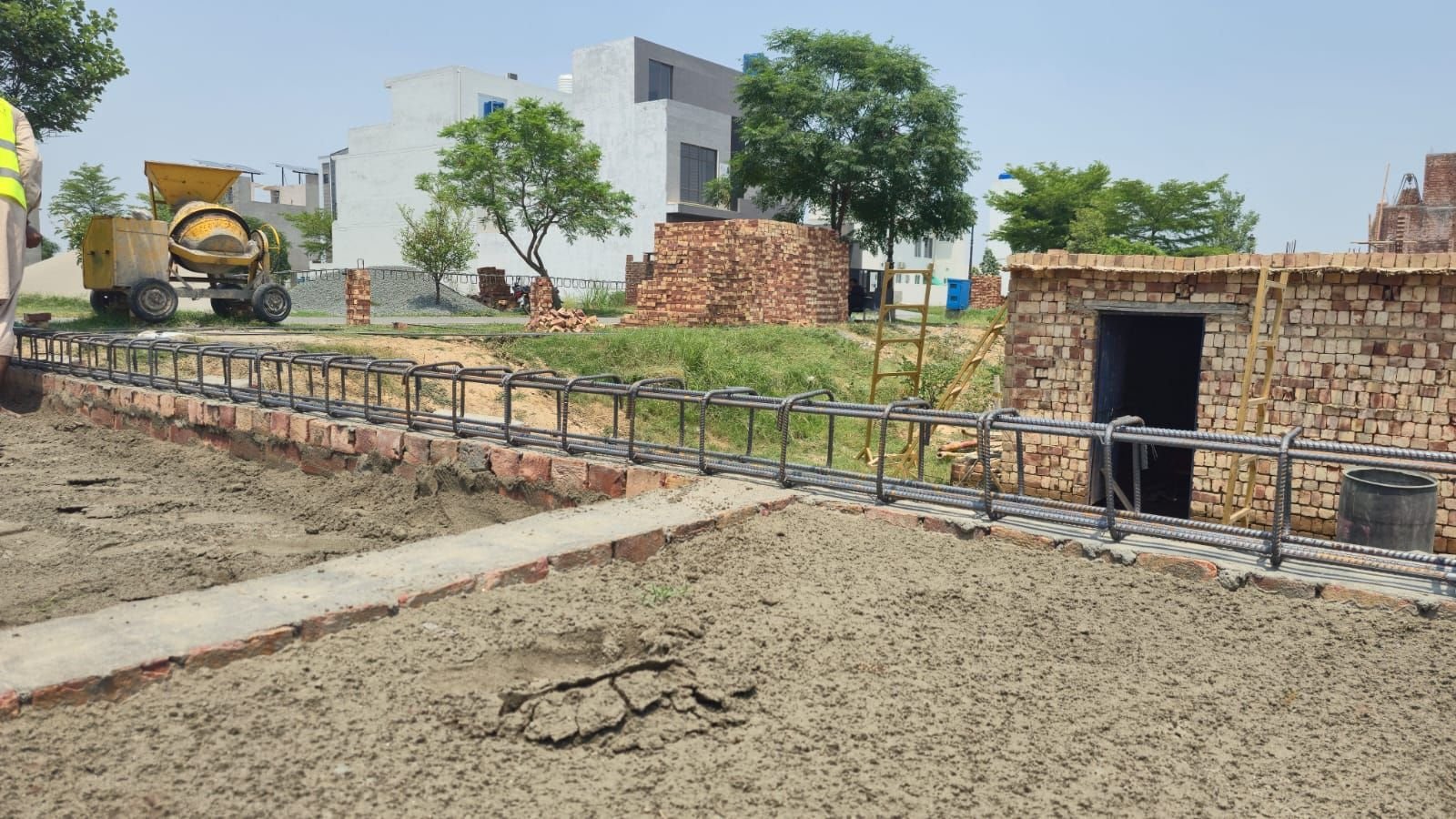

Compacted plinth filling with steel bars and concrete mixer on a residential construction site in Lahore — Plinth filling compacted and ready for next stage

Stage 2: Brick masonry starts at the plinth line

Brick work begins on the boundary and plinth line once the base is ready.

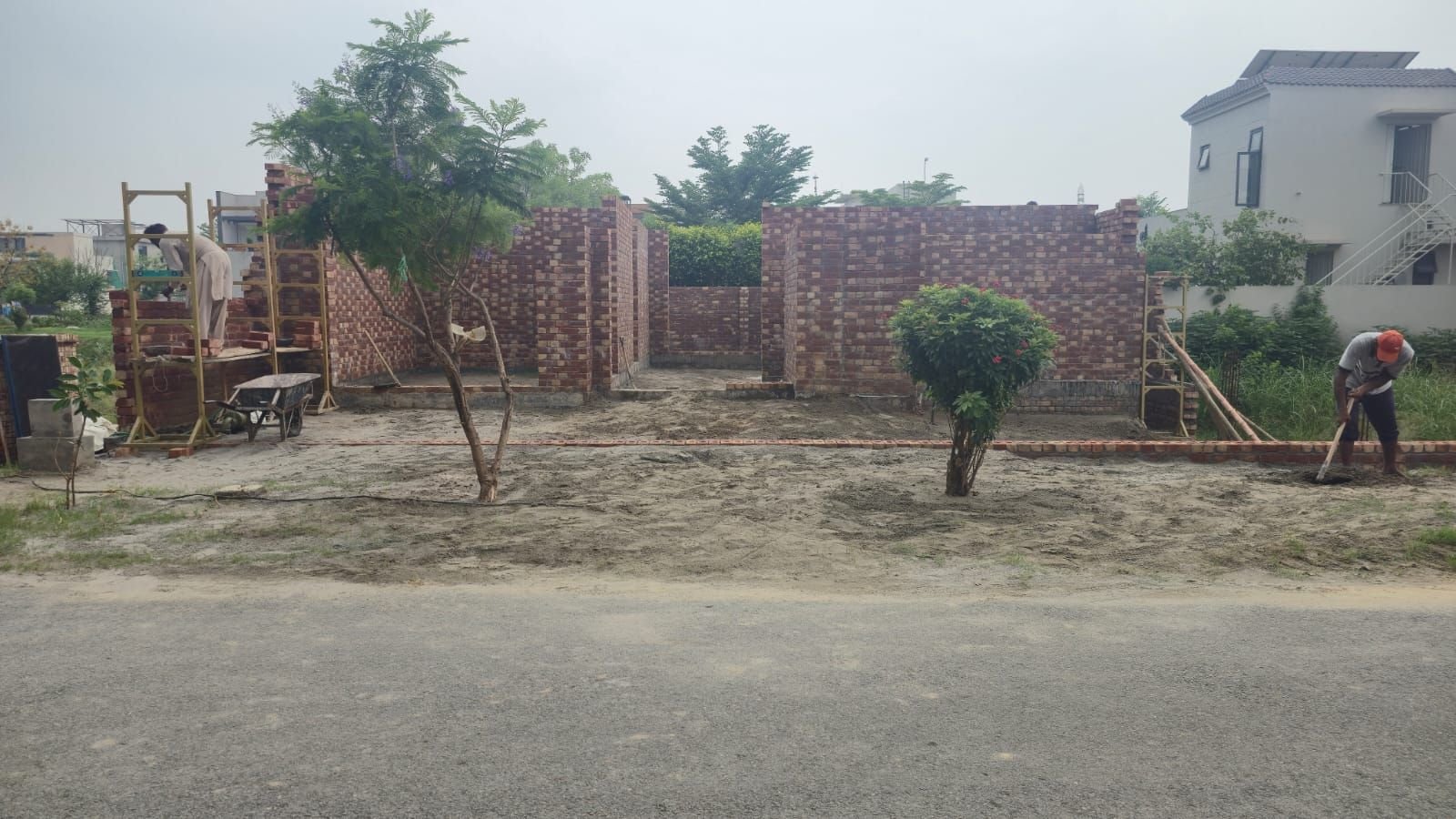

Brick masonry wall rising on a plot at the start of house construction in Lahore — Brick work begins on the boundary and plinth line

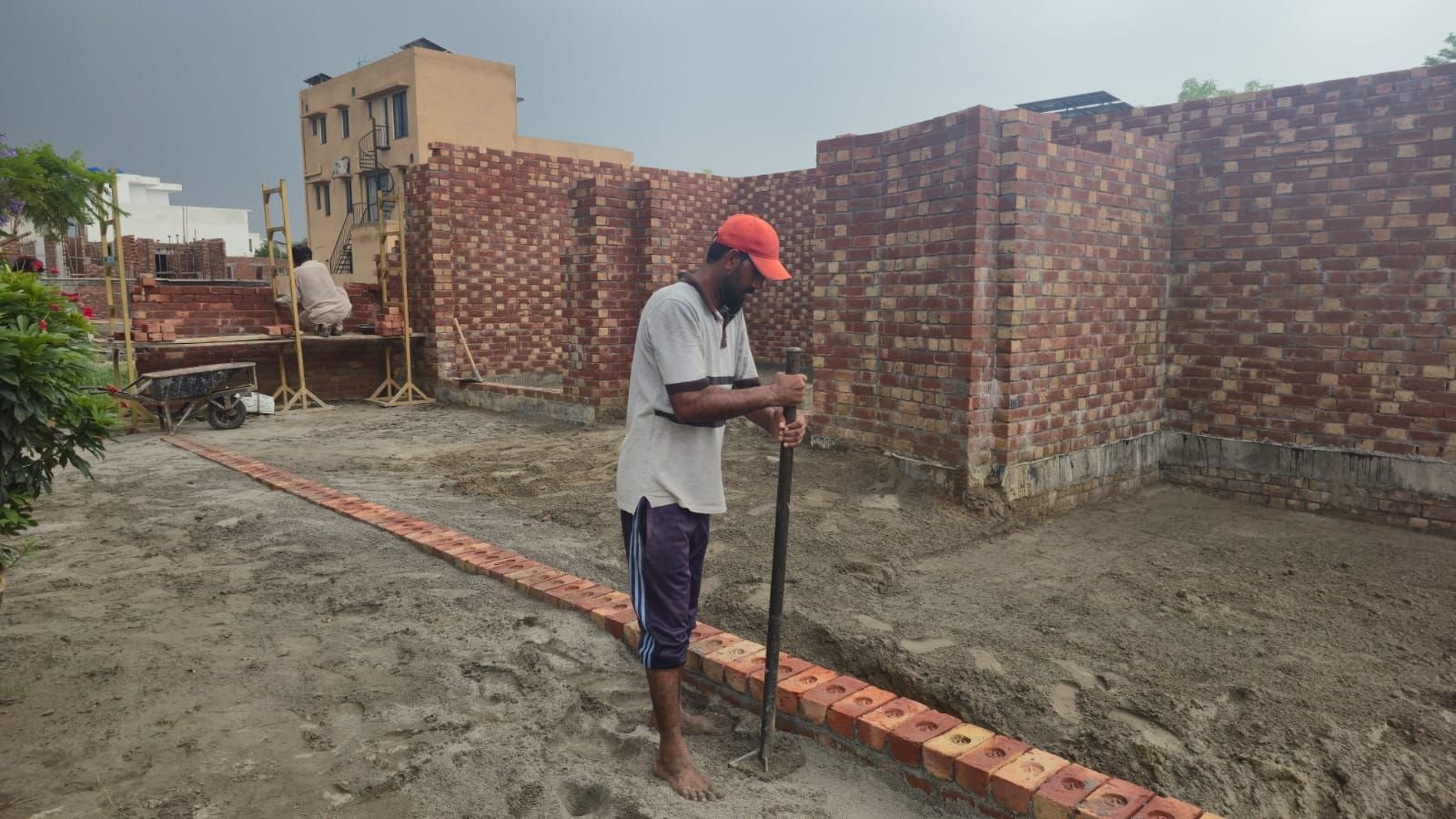

Labourer levelling soil beside a new brick wall at a residential construction site in Lahore — Levelling and brick work along the plinth line

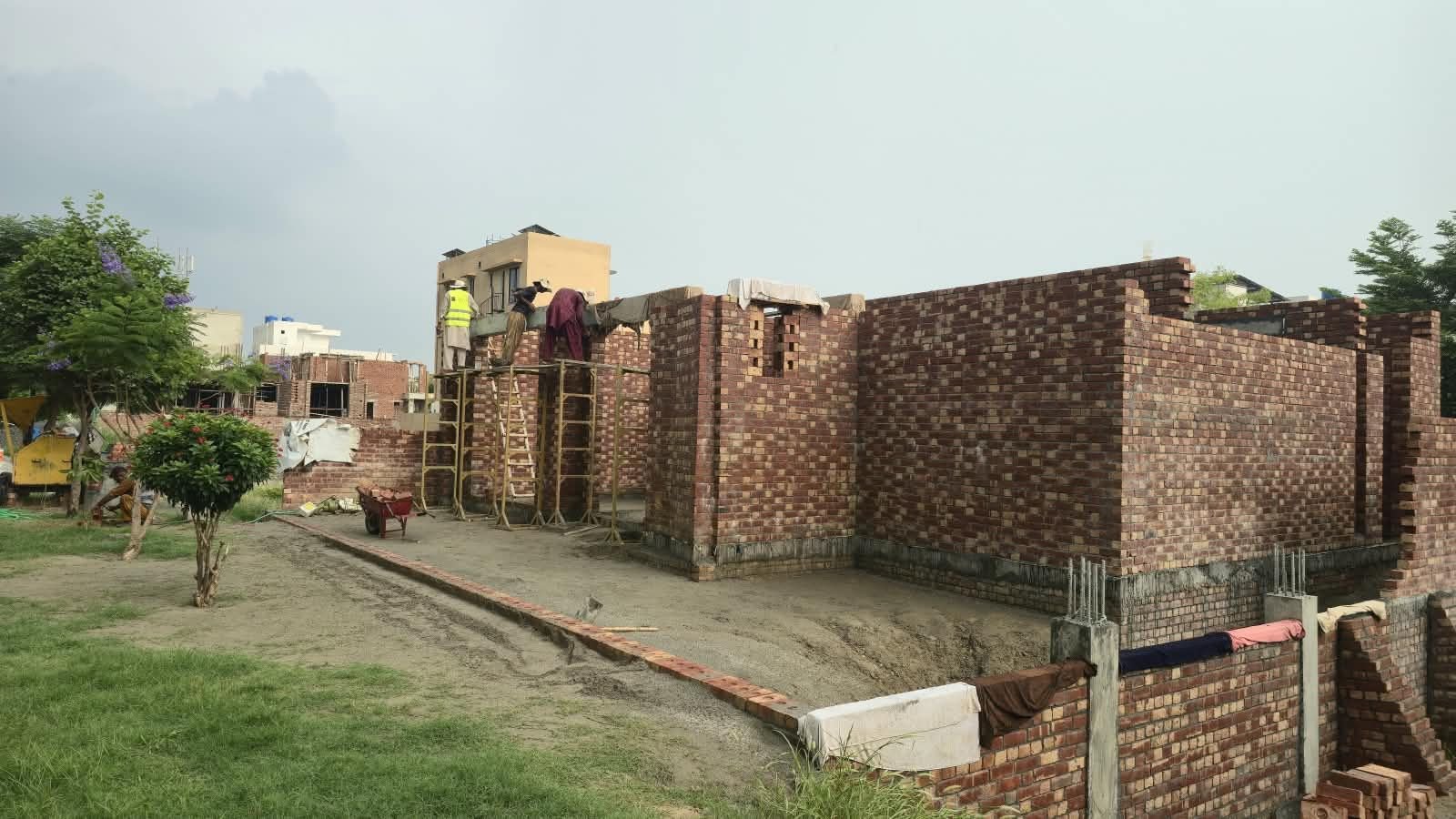

Brick wall and plinth beam taking shape at a residential construction site in Lahore — Brick walls and plinth beam in progress

Stage 3: Brick walls going up on scaffolding

Masons work on steel scaffolding so every course of brick stays level and plumb.

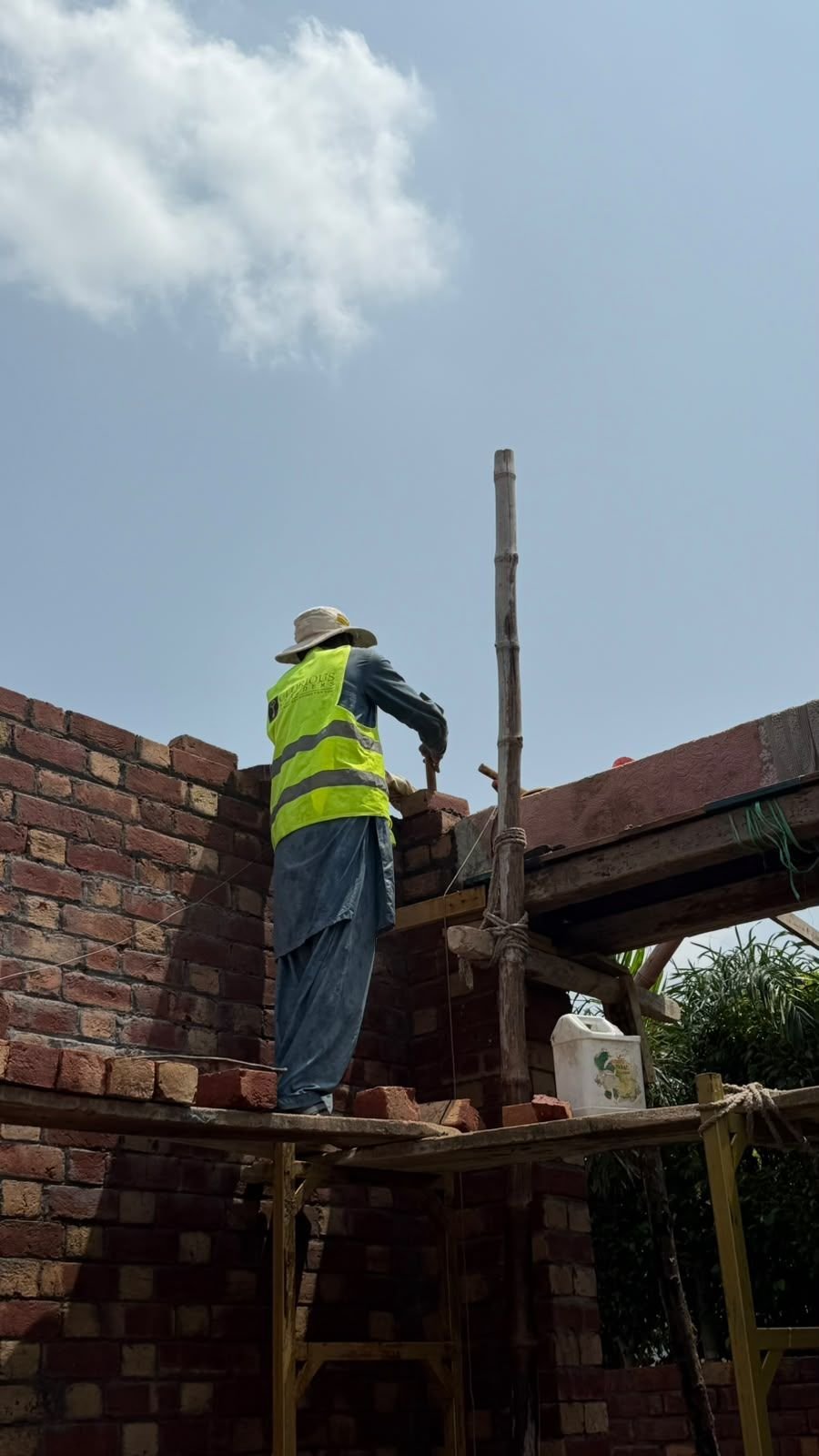

Mason laying red bricks on scaffolding during house construction in Lahore — Brick masonry in progress on scaffolding

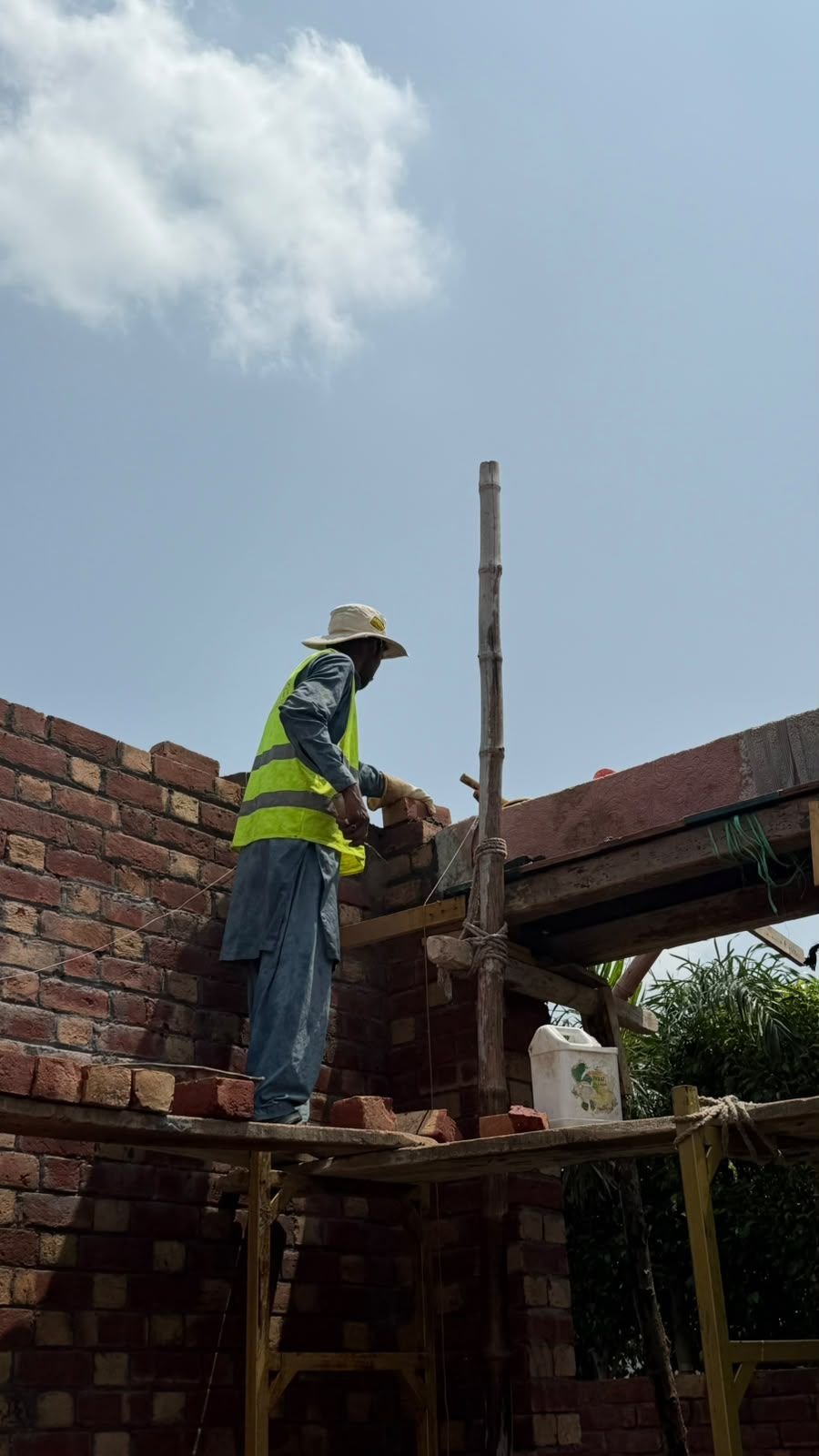

Construction worker in safety vest building a brick wall on a house site in Lahore — Brick wall going up with safety gear in use

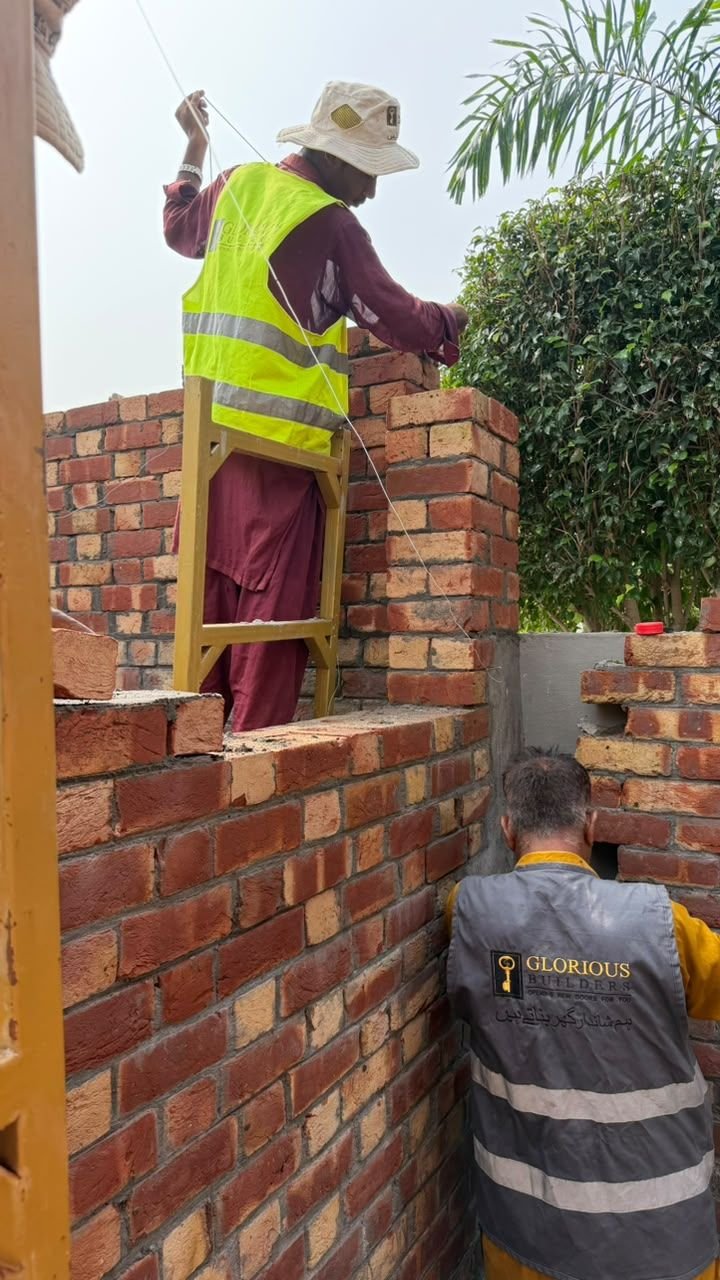

Two workers laying bricks on a yellow steel scaffold at a residential building site in Lahore — Brick laying on steel scaffold

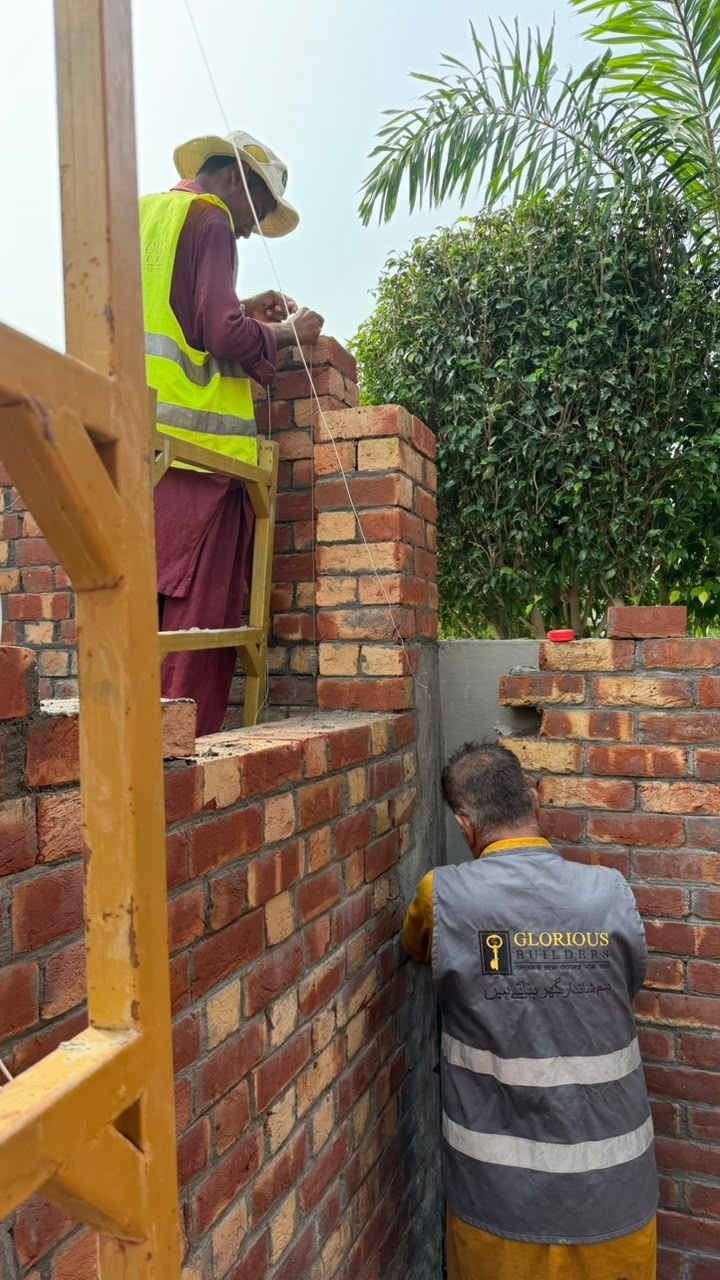

Mason working on a brick wall with steel scaffold during residential construction in Lahore — Steady brick work with scaffold support

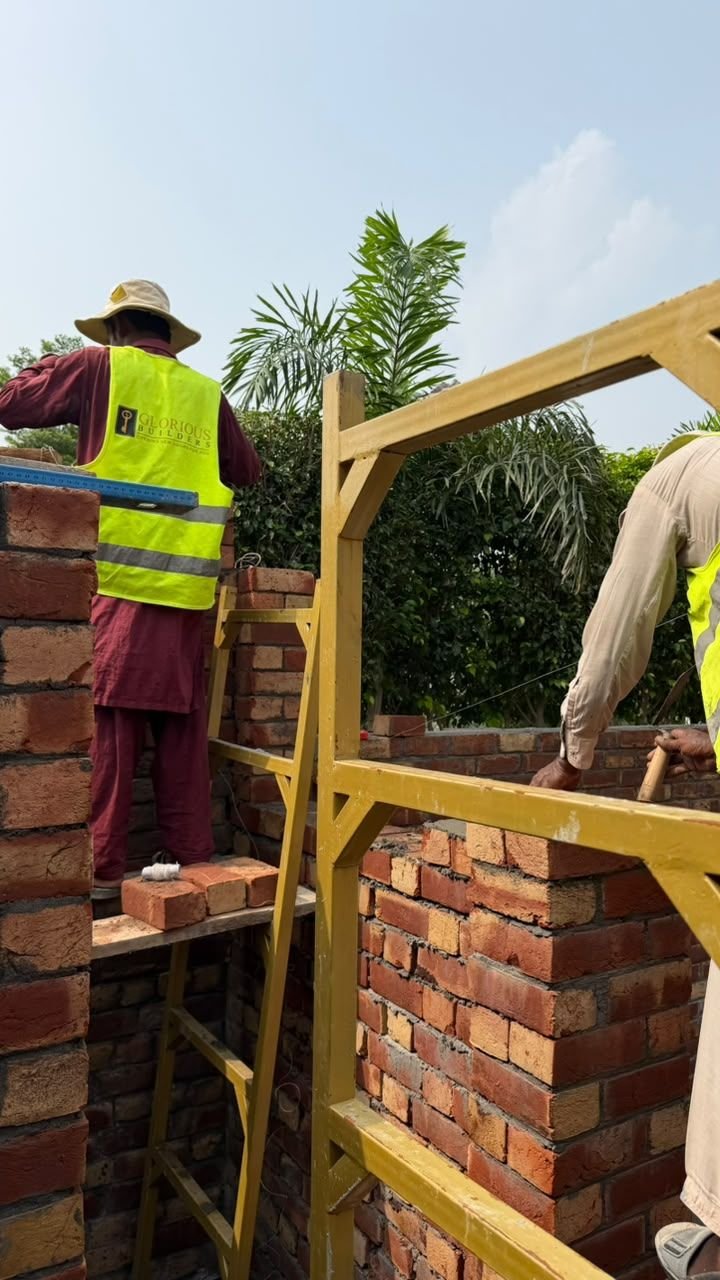

Labourer laying bricks inside a yellow scaffold frame on a house construction site in Lahore — Brick work inside scaffold frame

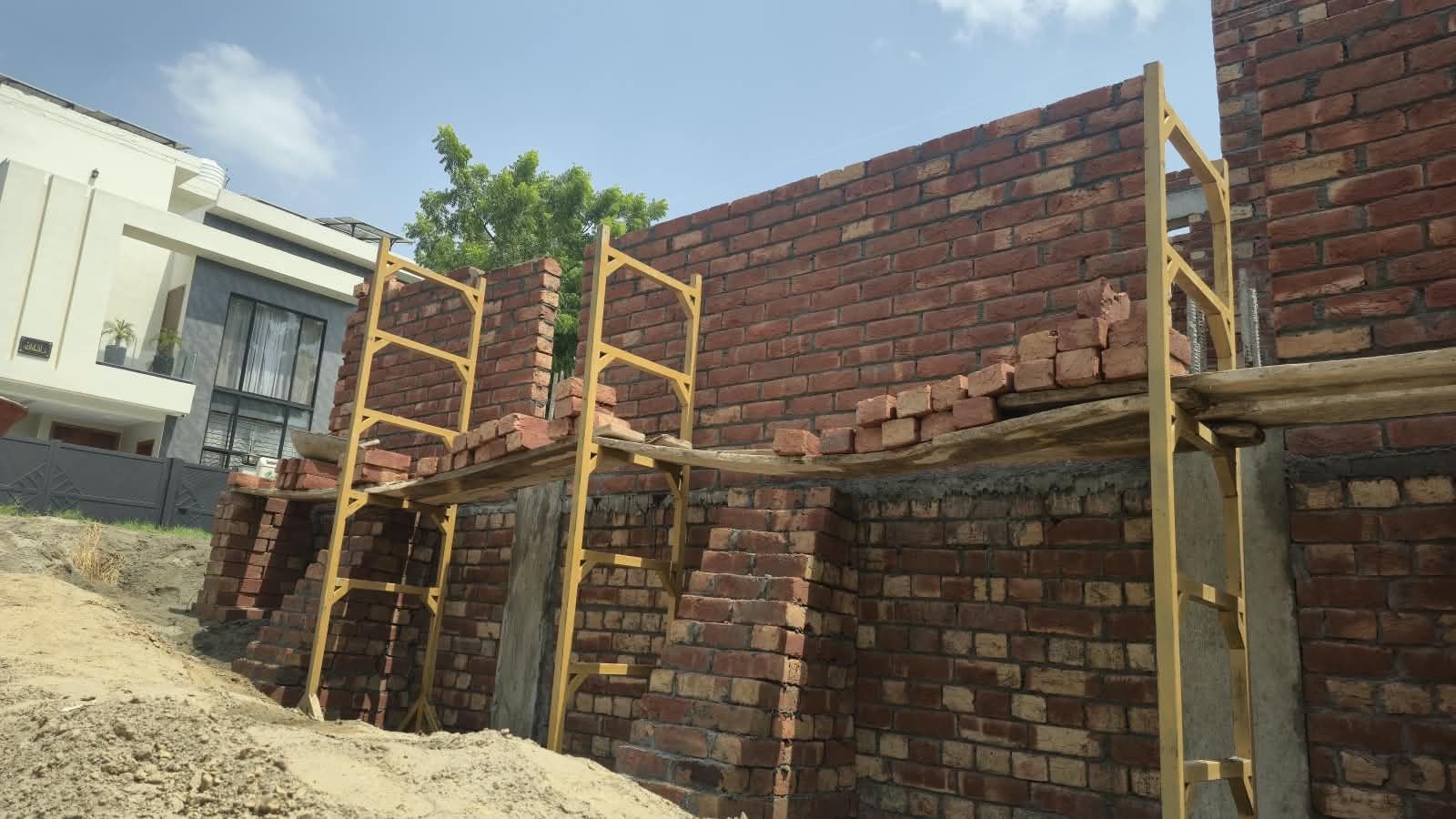

Brick wall with yellow scaffolding next to a neighbouring house under construction in Lahore — Brick wall with scaffold support

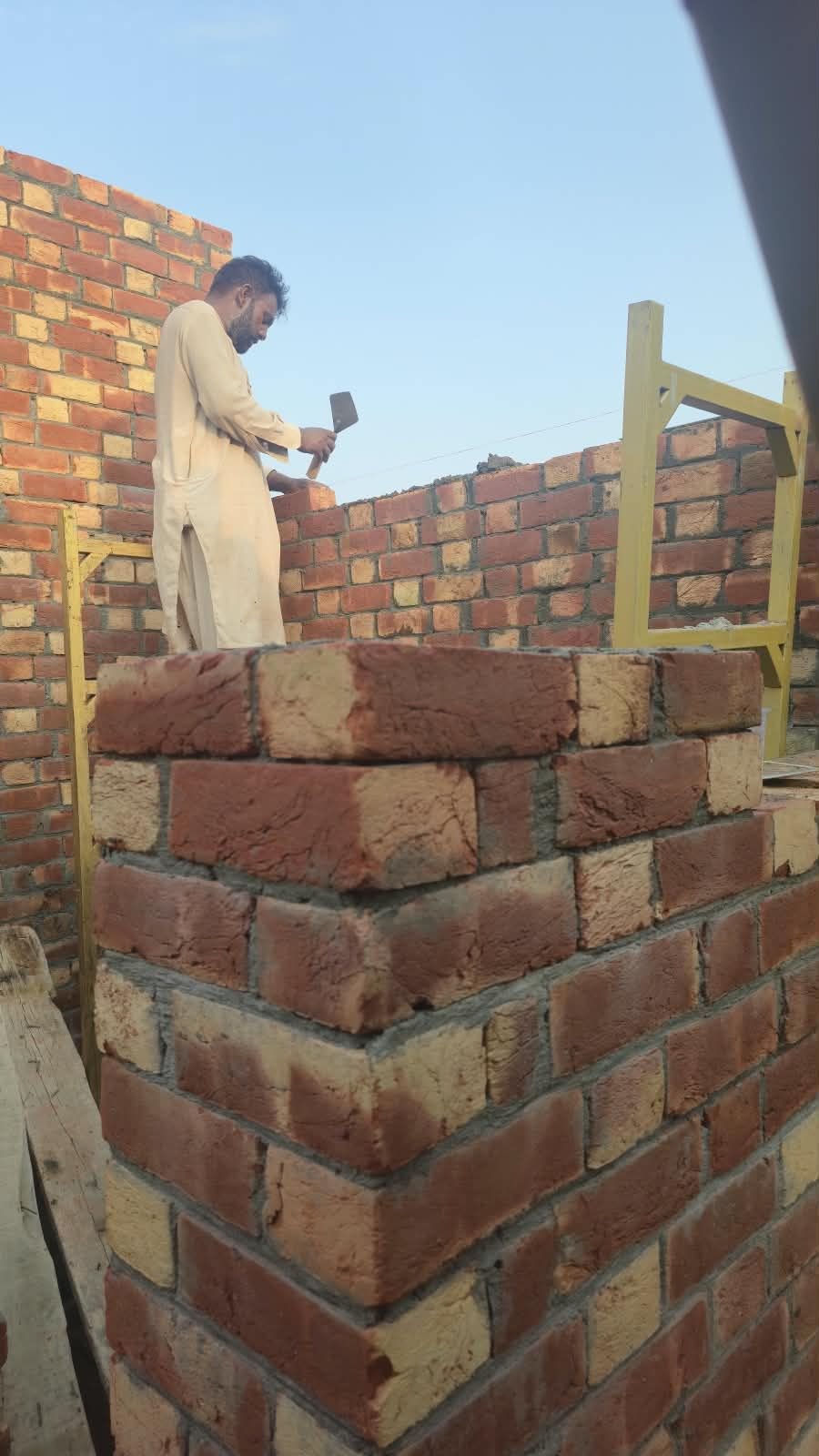

Close up of a mason finishing a brick wall corner on a house construction site in Lahore — Close up of brick wall corner work

Stage 4: Rooms take shape up to lintel level

Walls reach lintel level and the room layout starts to show.

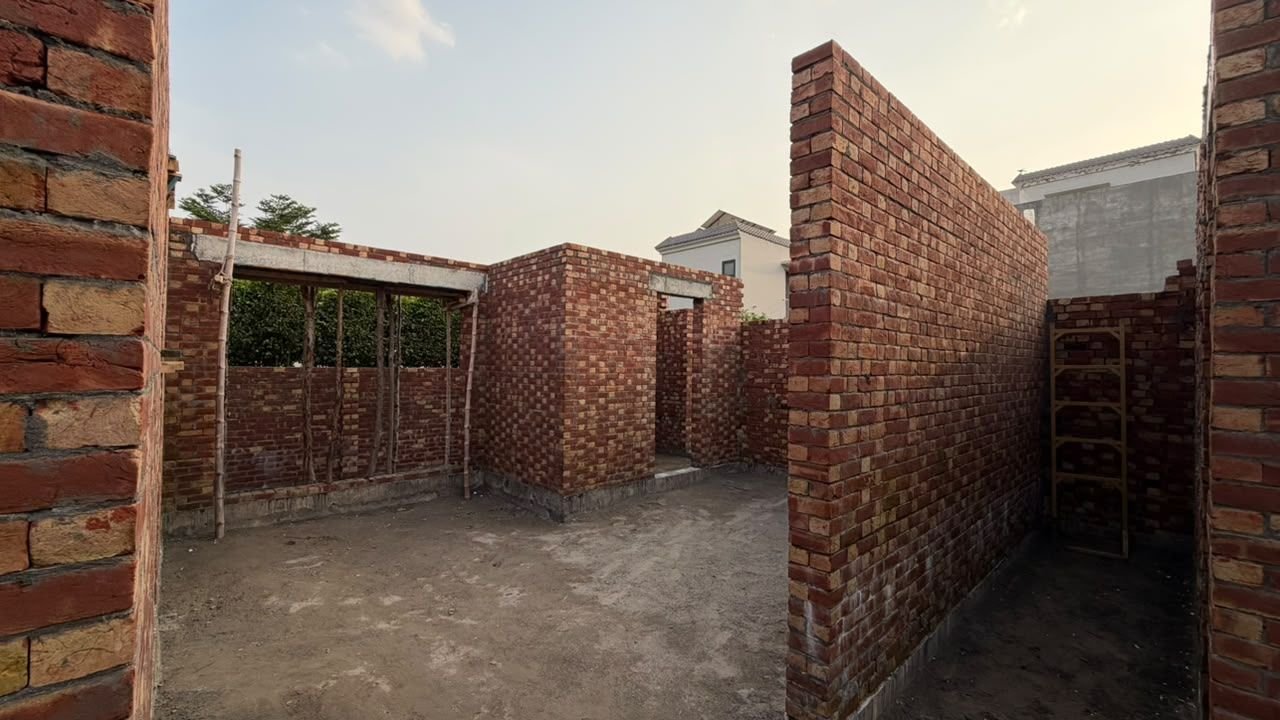

Brick wall rooms taking shape inside a house under construction in Lahore — Room walls taking shape

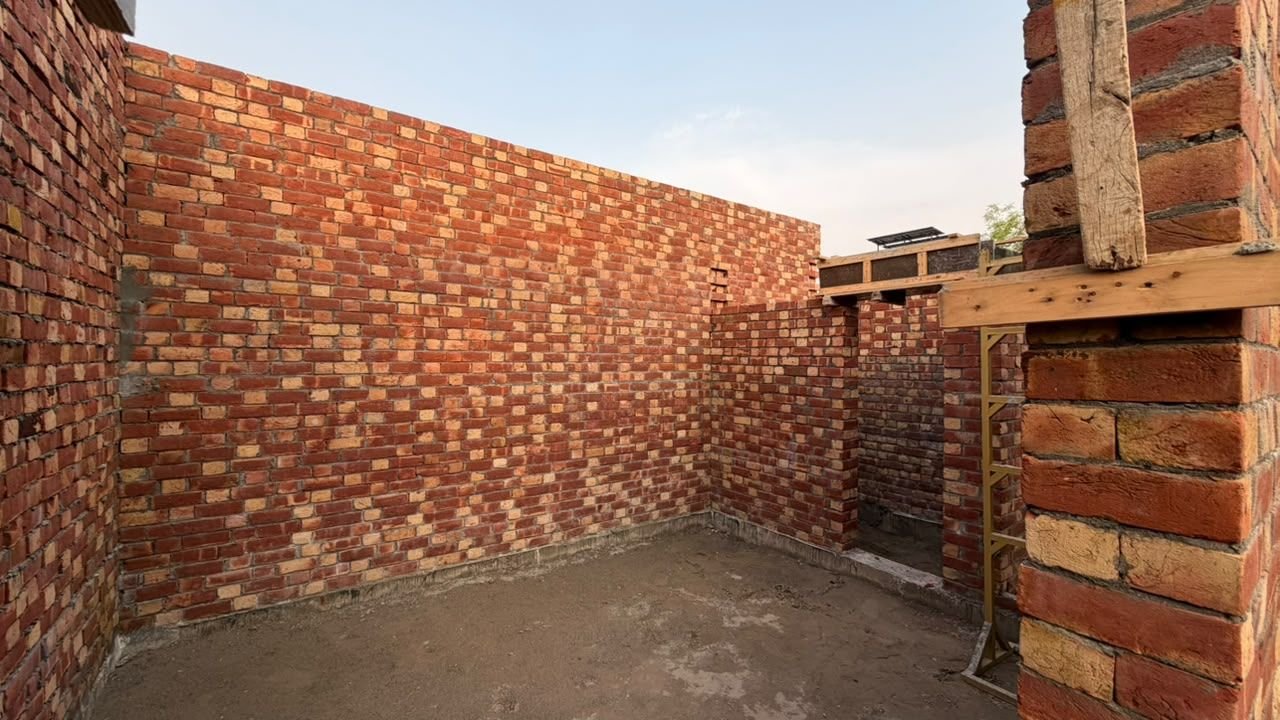

Tall brick walls and room layout inside a residential construction project in Lahore — Room layout rising in brick

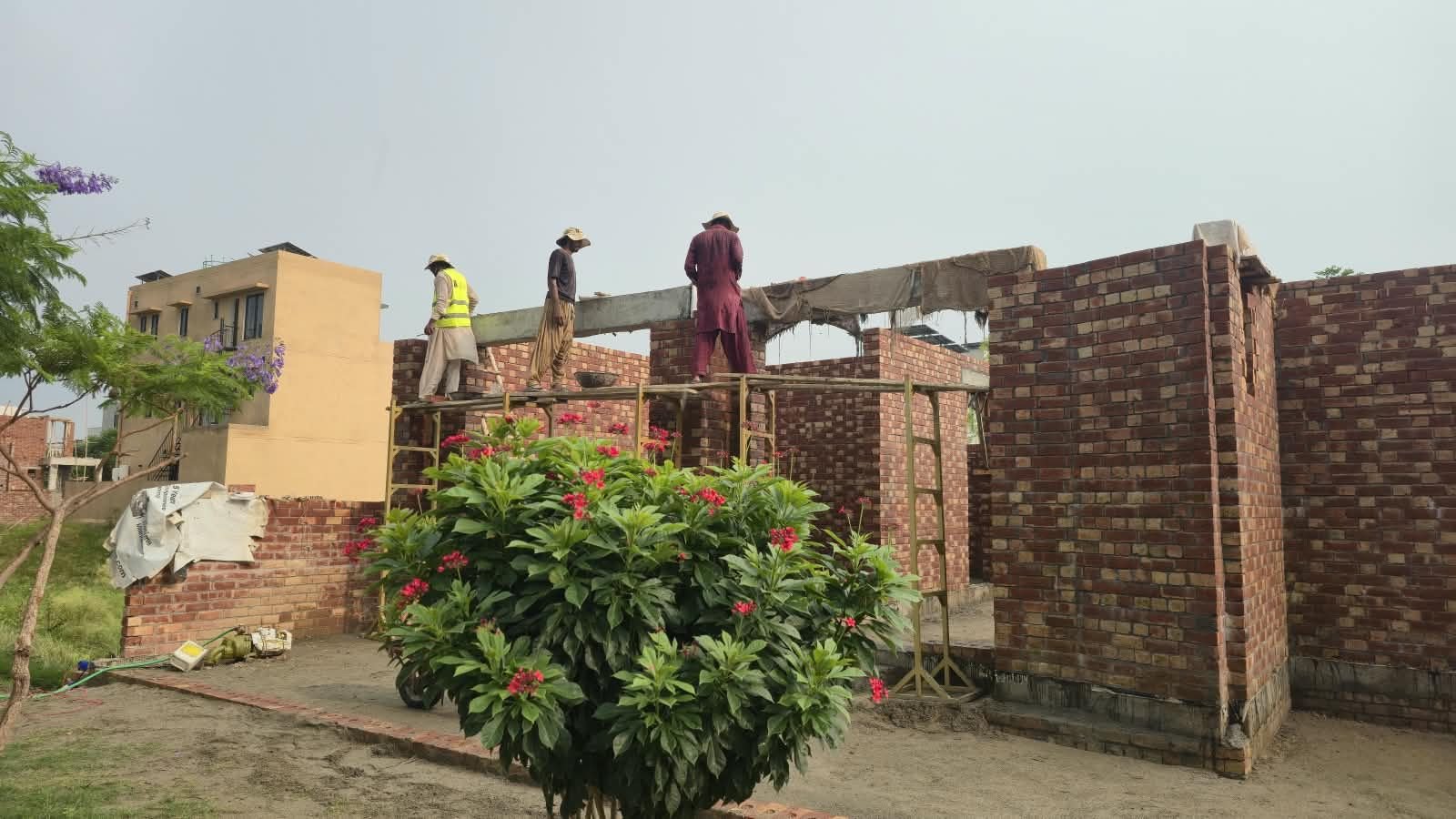

Workers preparing lintel level over a brick wall at a house under construction in Lahore — Brick walls reaching lintel level

Stage 5: Lintel shuttering

Shuttering and steel supports go in before the lintel is cast over doors and windows.

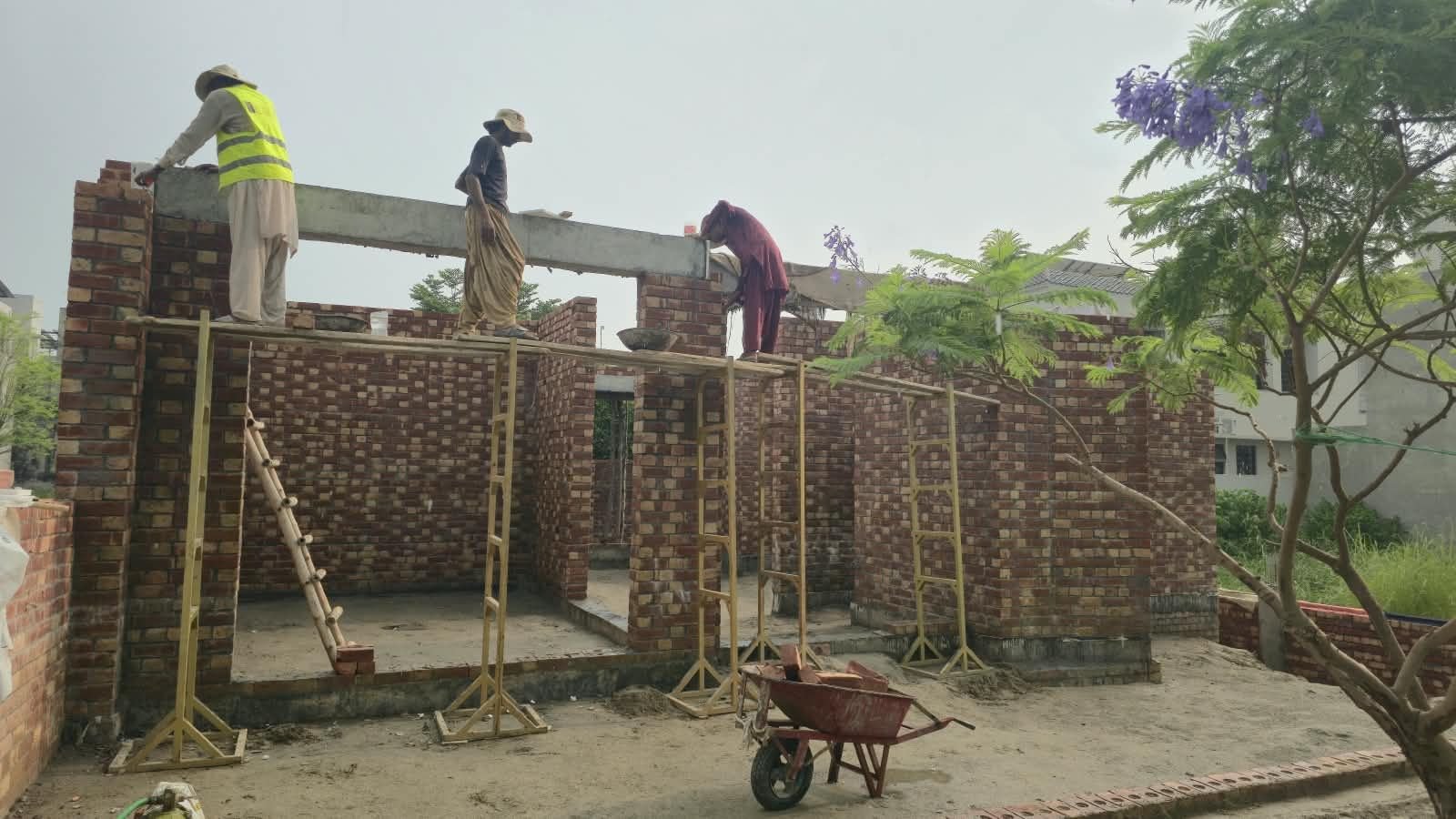

Workers placing lintel shuttering and steel supports over brick walls on a house construction site in Lahore — Lintel shuttering and supports in place

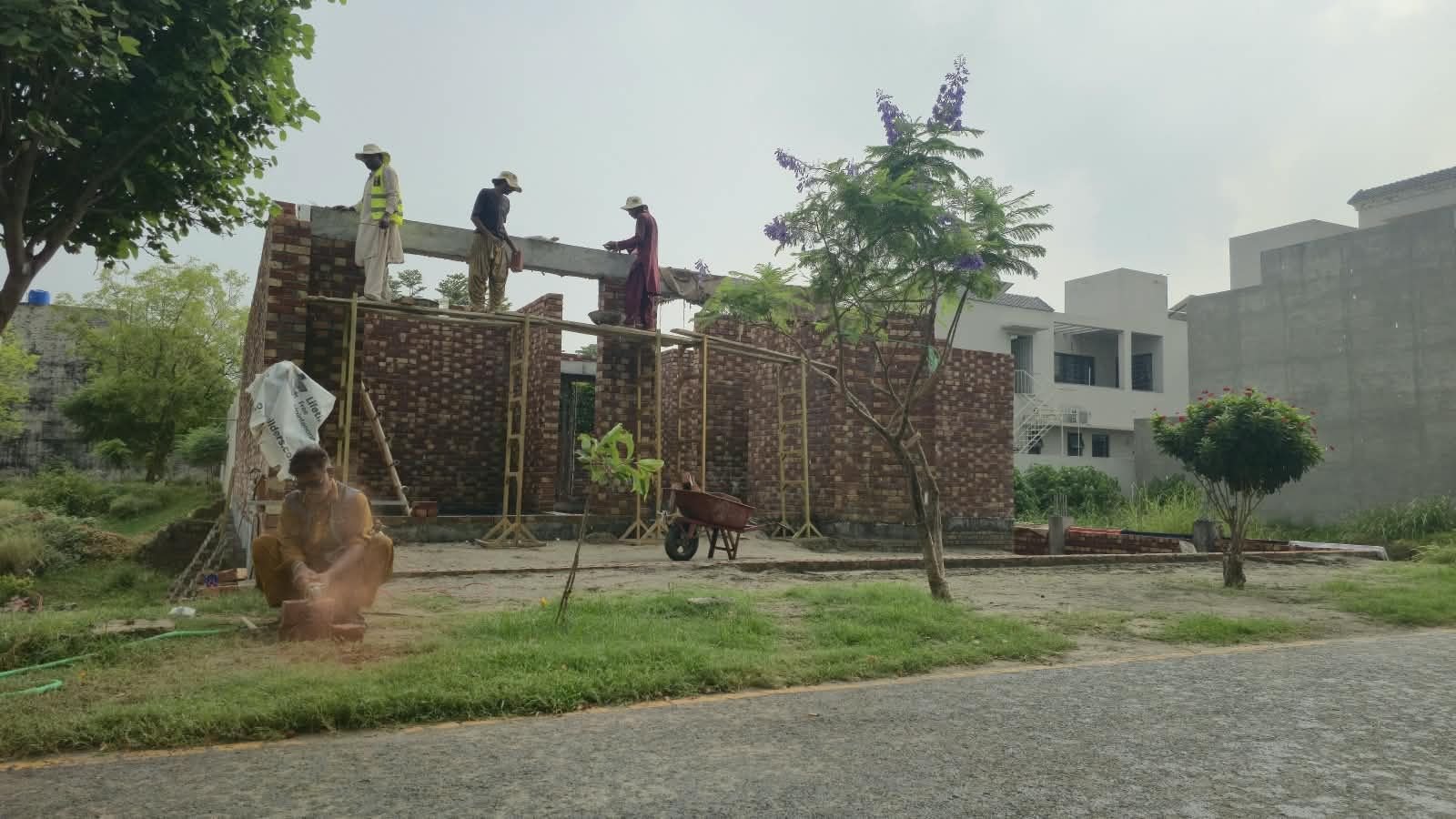

Lintel shuttering and scaffolding over brick walls during house construction in Lahore — Lintel shuttering on brick walls

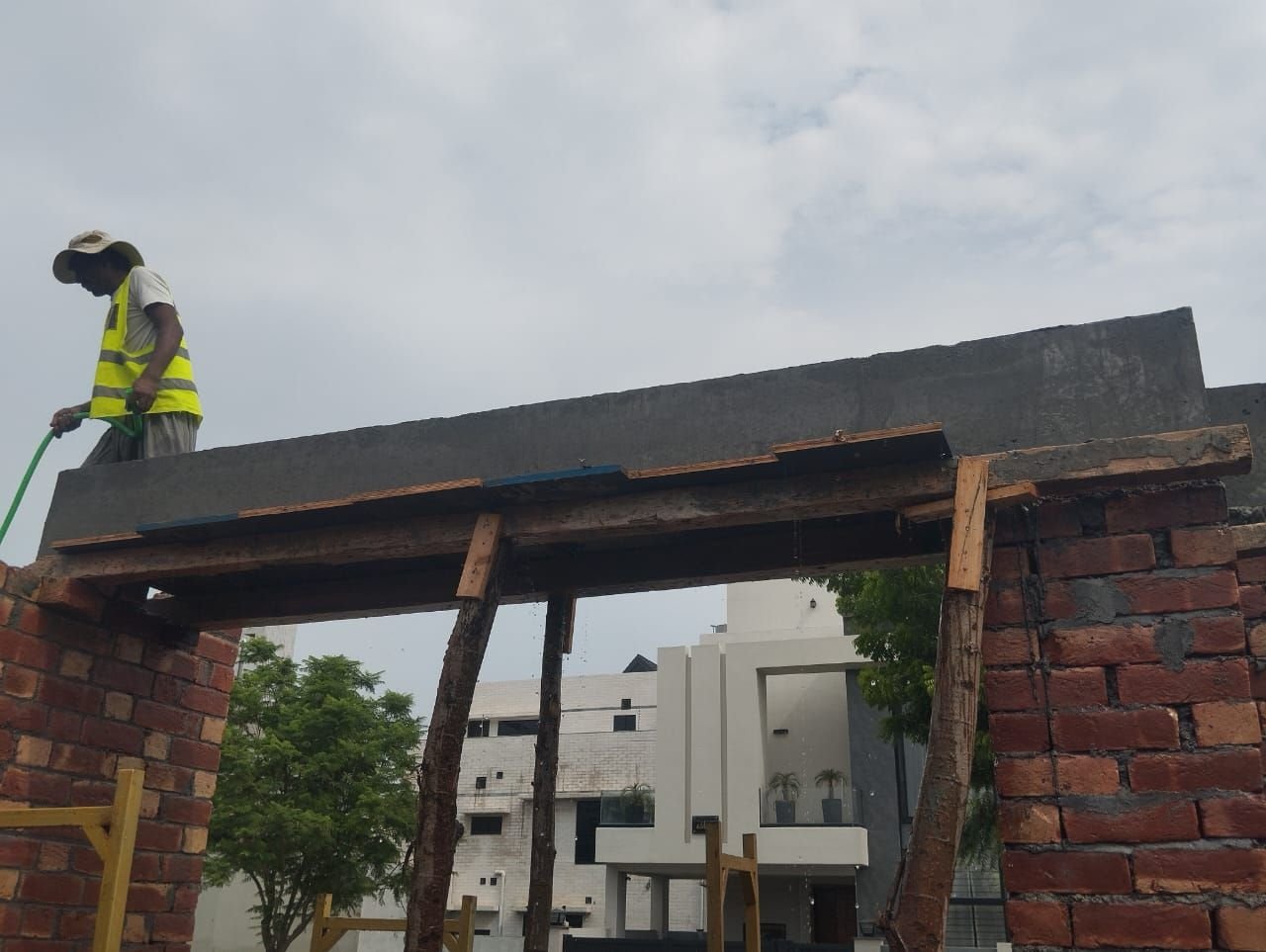

Worker on lintel shuttering above a brick opening during house construction in Lahore — Lintel casting preparation

Stage 6: Water curing

Fresh brick work and concrete are cured with water so they gain full strength.

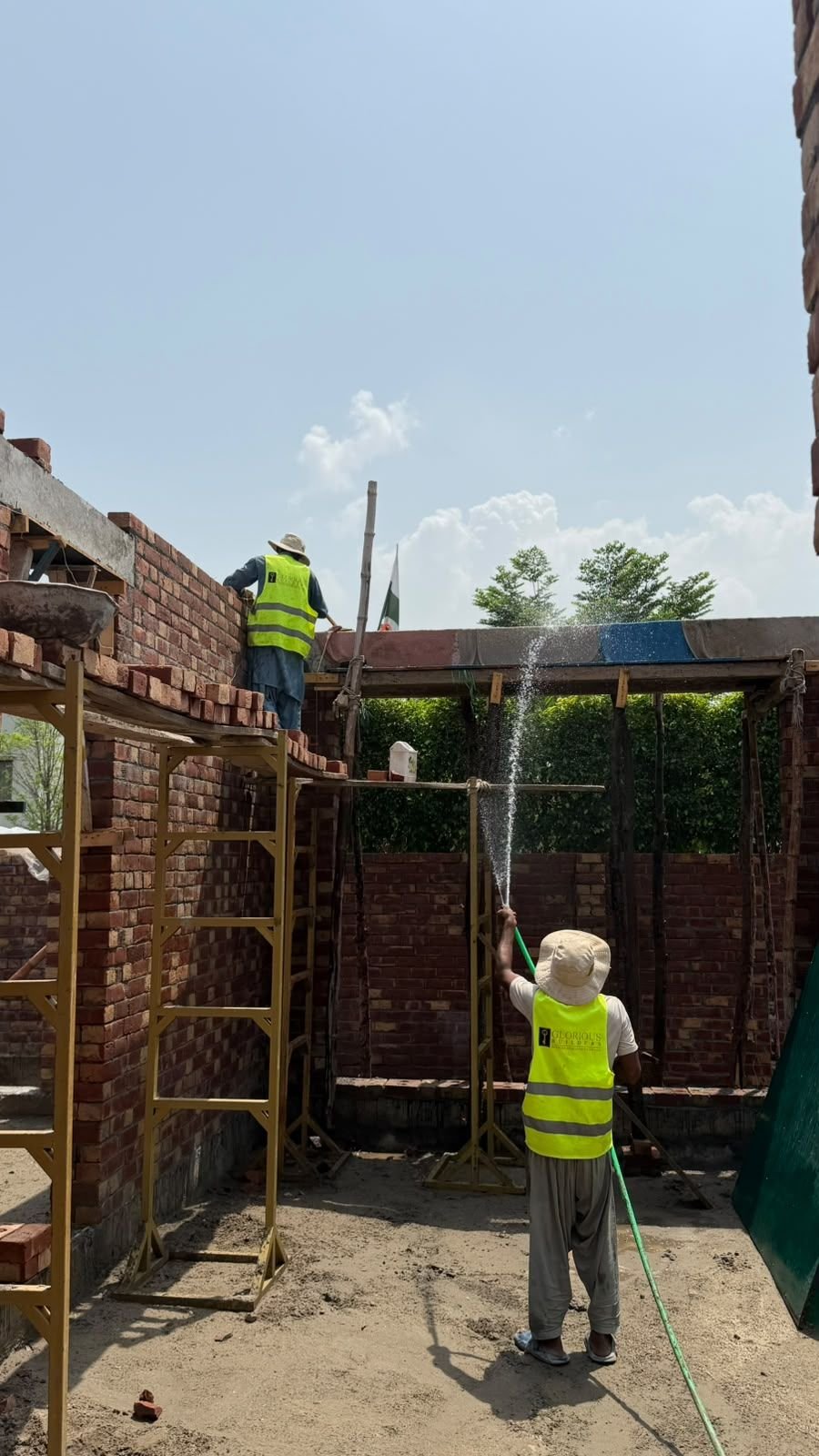

Worker curing fresh brick work with a water hose at a house construction site in Lahore — Water curing of fresh brick work

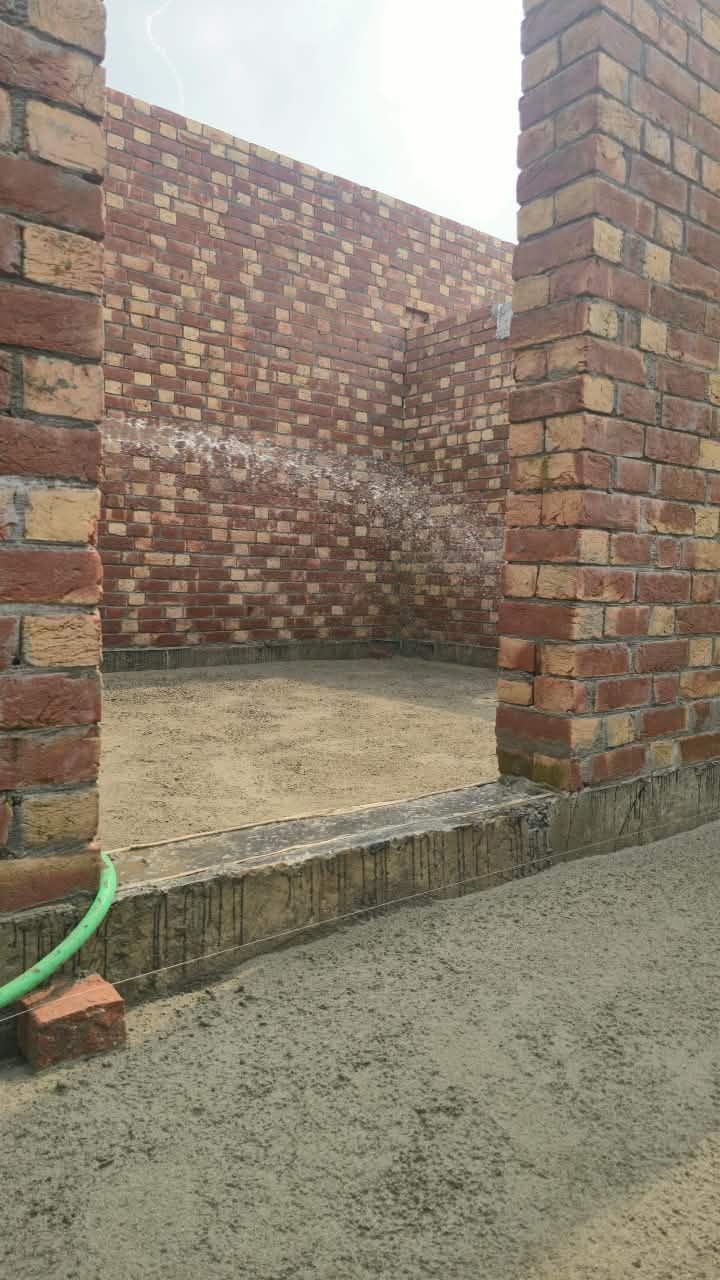

Water curing of brick wall and plinth with a hose at a house construction site in Lahore — Curing keeps the masonry strong

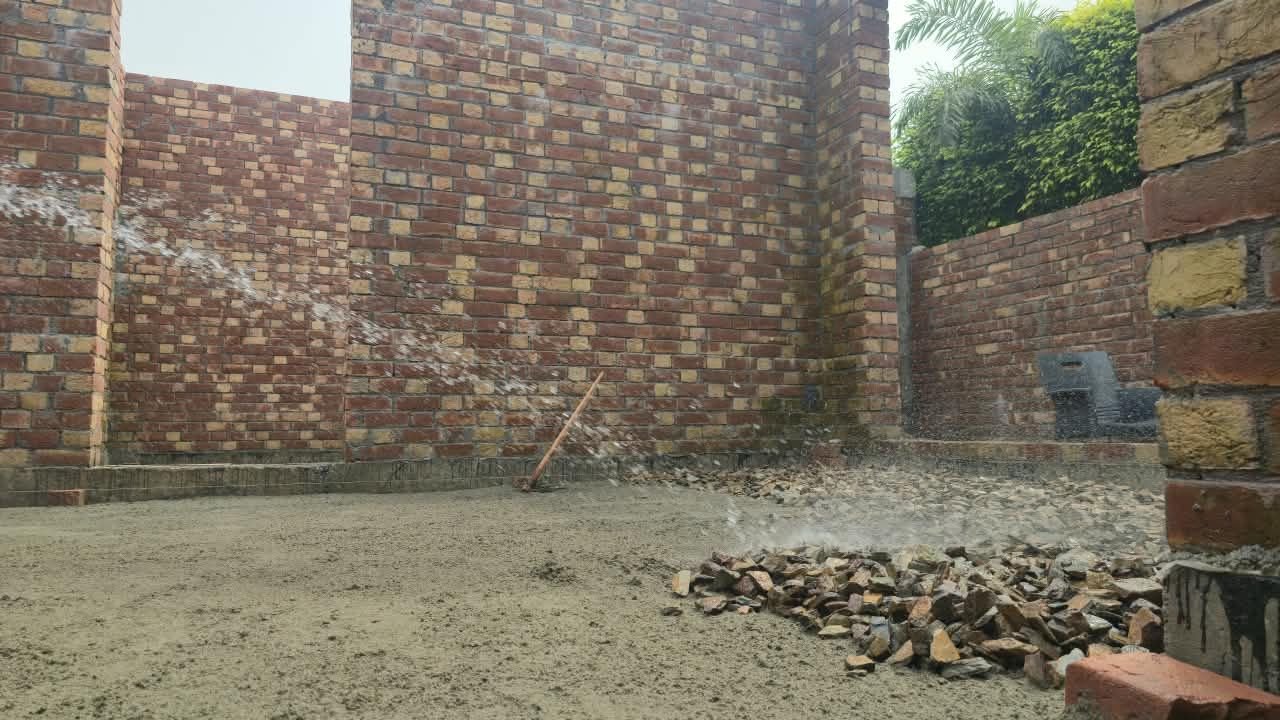

Sprinkling water for curing on a brick wall at a house construction site in Lahore — Curing in progress on brick walls

Site overview

Wide views of the site and our project board.

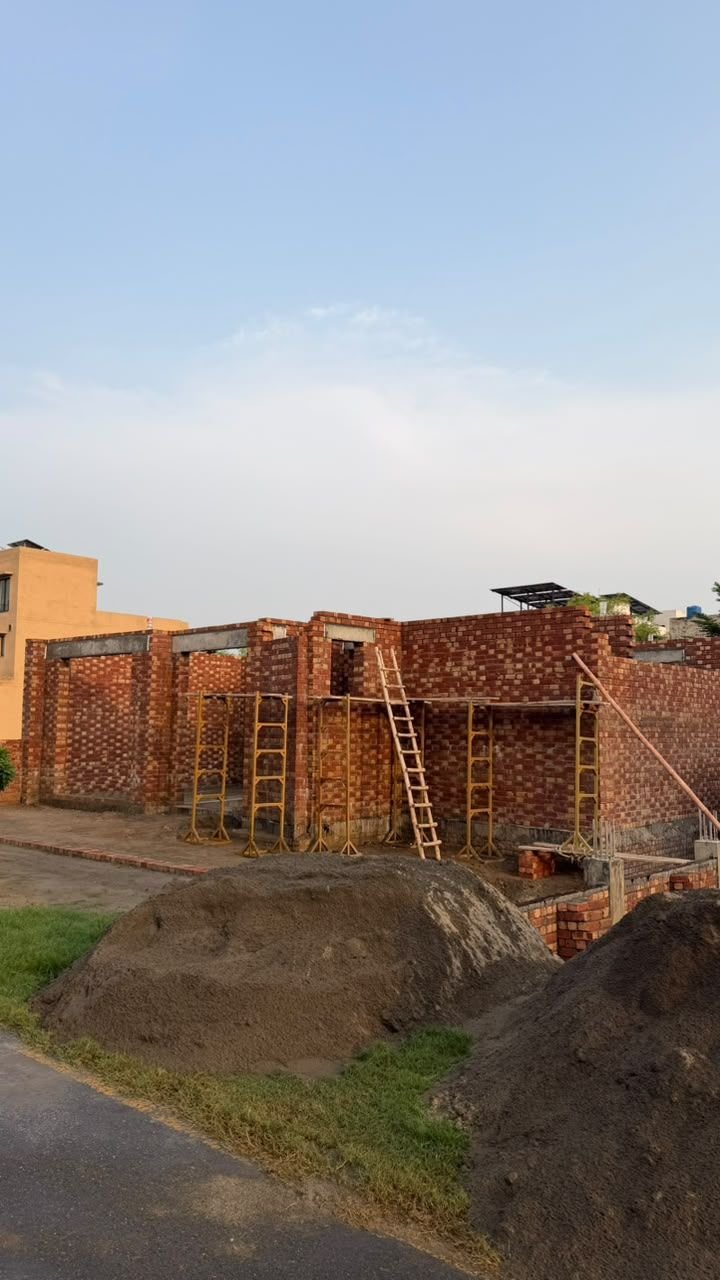

Wide view of a house under construction with brick walls and scaffolding in Lahore — Wide view of the live site

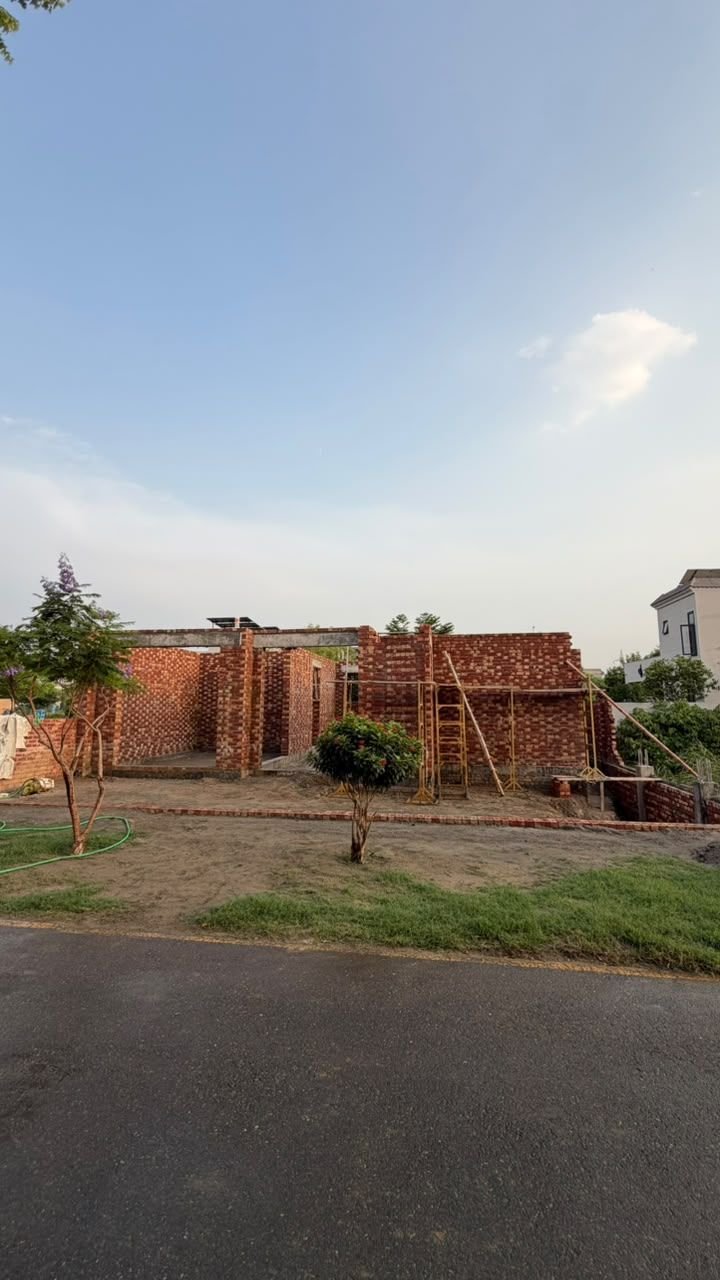

Distant view of a brick house structure under construction on a Lahore street — Site seen from the street

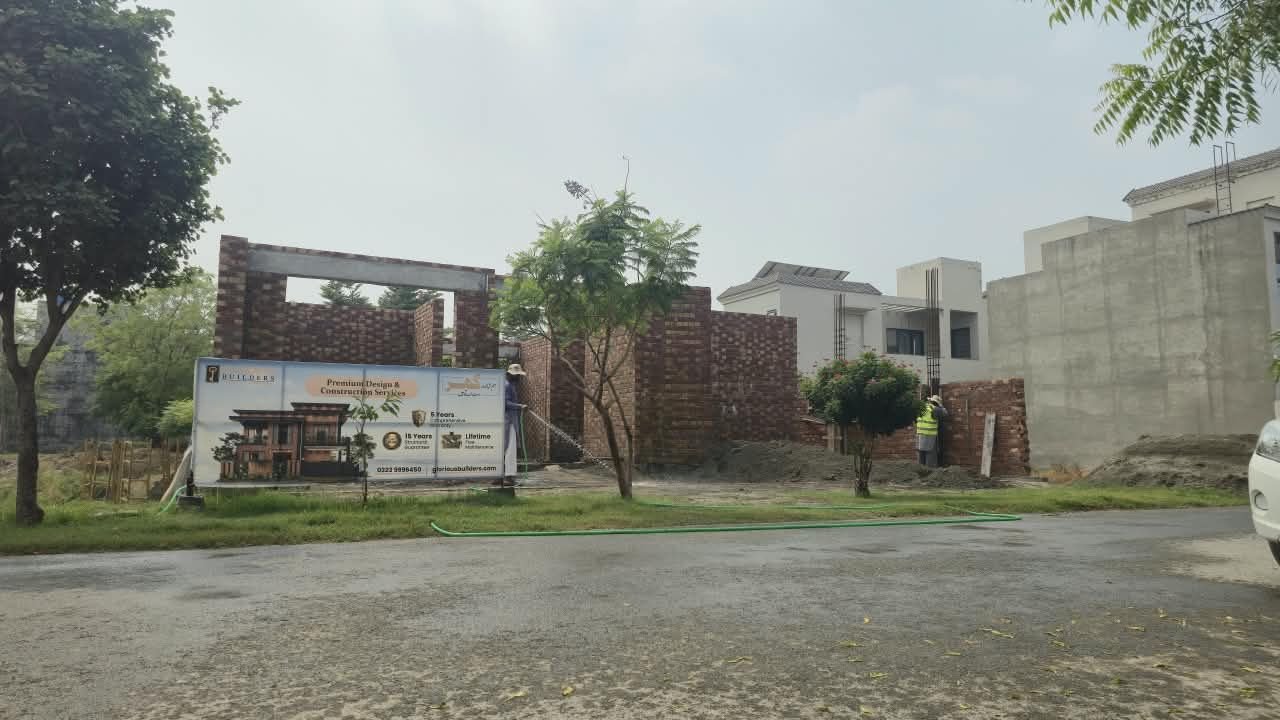

Glorious Builders site board in front of a house under construction in Lahore — Glorious Builders site board at a live project

More live updates: house construction in DHA Lahore, house construction in Lake City Lahore, or see all live site updates and our completed projects. Our services: construction company in Lahore, grey structure construction and turn key house construction.

What to check at each stage

These checks apply to any house build in Lahore, whoever your contractor is. They match the stages shown above.

Soil compaction and plinth filling. Fill should be laid in layers and compacted, not dumped. Poor compaction shows up later as floor cracks.
Brick masonry. Check brick quality, wall thickness against the drawing, and that joints are filled and staggered.
Lintels. Shuttering should be level and firm, and reinforcement placed as per the structural drawing before concrete goes in.
Curing. Concrete needs to be kept wet after casting. Ask how many days of curing are planned.

Compare what you see with the item lines in your BOQ. Our BOQ guide explains how.
